MS Plates & Structurals

We offer a wide range of MS Plates and Structurals, known for their strength, durability, and versatility. Sourced from trusted manufacturers, our products are ideal for construction, fabrication, and industrial applications. With a focus on quality, precise specifications, and timely delivery, we ensure reliable solutions to meet diverse project requirements.

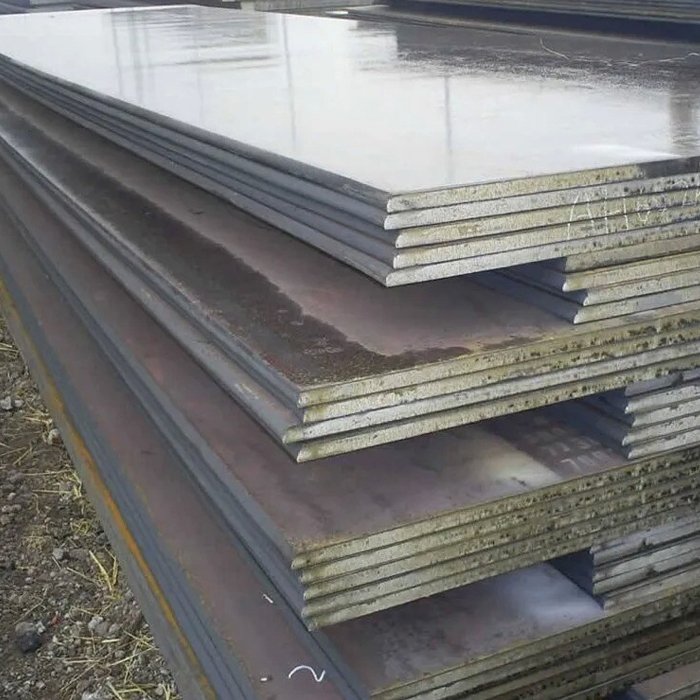

MS PLATES / SHEETS / HR COILS

PARAMETER	DETAILS
THICKNESS	1.6 MM to 200 MM
WIDTH	1250 MM to 2500 MM
LENGTH	2500 MM, 5000 MM, 6300 MM, Cut to Length
GRADE	IS 2062 E250 BR, IS 2062 E350 BR, IS 2062 E350C, SA516 GR 70 (Boiler Quality), Other equivalent grades as per requirement

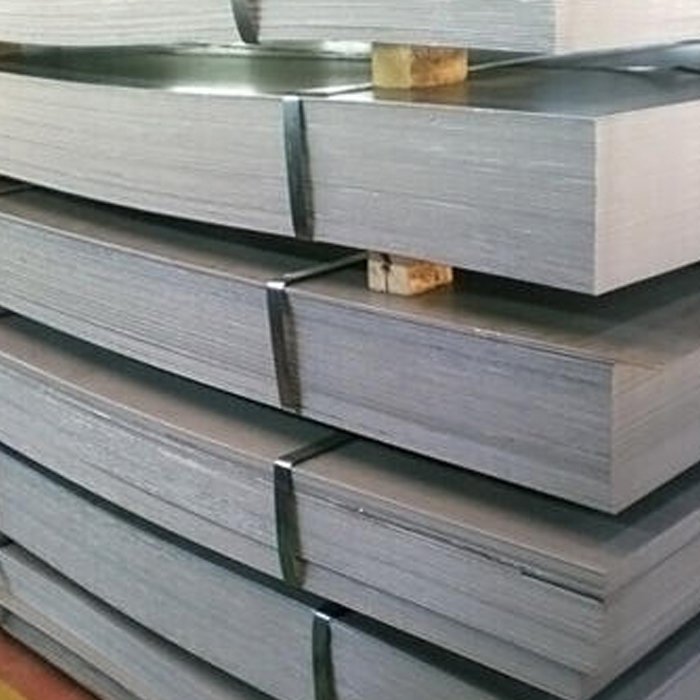

CRCA Sheets & CRCA Coils

We supply high-quality CRCA Sheets and CRCA Coils, known for their smooth surface finish, excellent formability, and superior strength. Widely used in automotive, electrical, and precision fabrication applications, our CRCA products meet strict quality standards and dimensional accuracy.

PARAMETER	DETAILS
THICKNESS	0.6 MM to 3 MM
WIDTH	920 MM, 1000 MM, 1250 MM, 1500 MM, 1800 MM
LENGTH	2500 MM, Cut to Size
GRADE	IS 513 D

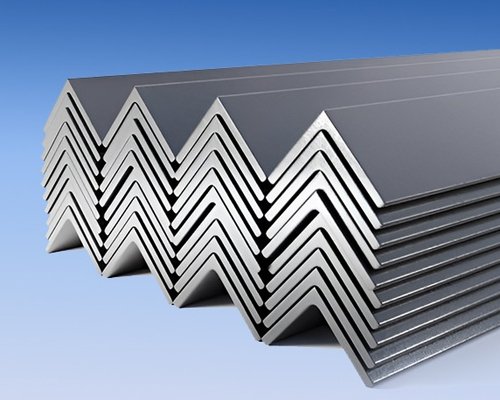

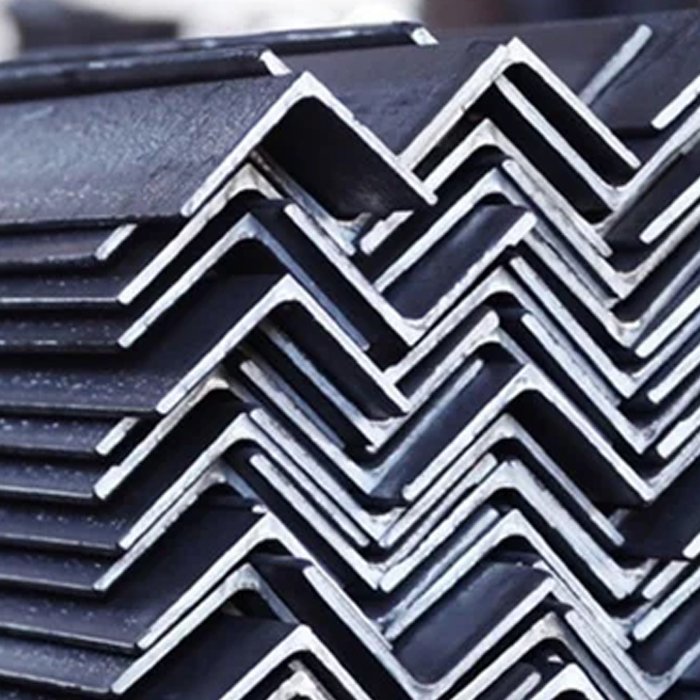

MS Angle

Specifications/Weight Per Kg/Meters-

Size (mm)	3	4	5	6	8	10	12	16	18	20	25
25*25	1.1	1.4	1.8	2.2
32*32	1.4	1.8	2.2	2.8
35*35	1.6	2.1	2.6	3
40’40	1.8	2.4	3	3.4
50*50	2.3	3	3.8	4.5
65*65			4.9	5.8	7.7	9.4
75*75			5.7	6.8	8.9	11
90*90				8.2	10.8	13.4	15.8
100*100				9.2	12.1	14.9	17.7
110*110					13.4	16.5	19.6	24.2
130*130					15.9	19.7	23.4	28.9
150*150						22.8	27.2	35.8	39.9	44.1
200*200							36.6	48.5	54	60	73.6

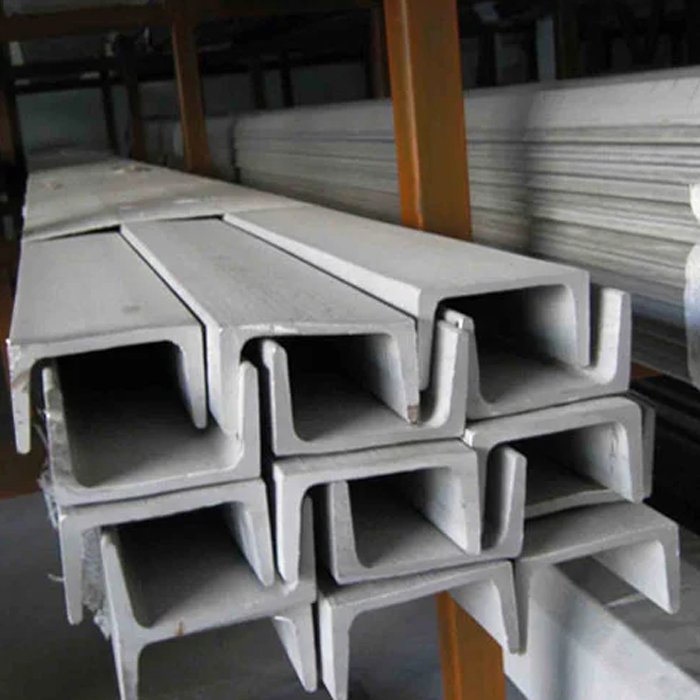

MS Channel

SIZE IN MM	WEIGHT IN KGS.PER MTR
75 X 40	7.126
100 X 50	9.597
125 X 65	13.098
150 X 75	16.799
175 X 75	19.597
200 X 75	22.298
250 X 80	30.599
300 X 90	36.298
400 X 100	50.300

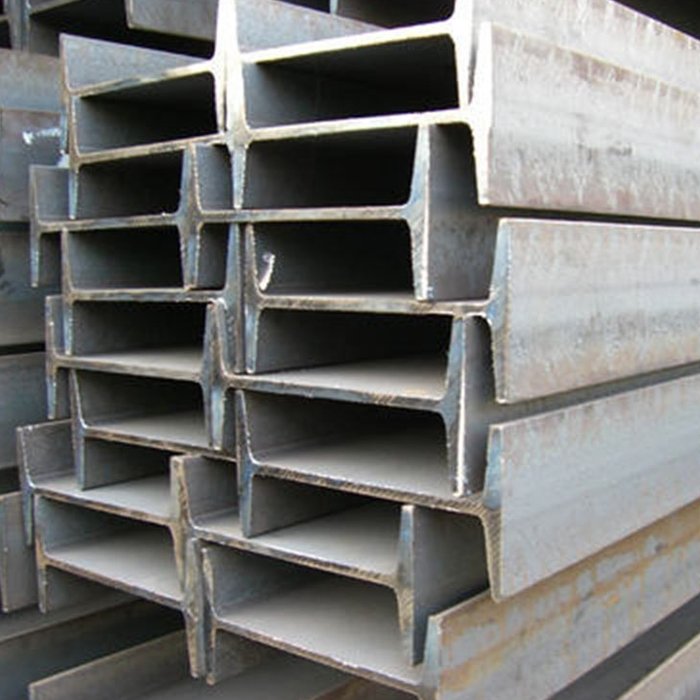

MS Beam

SIZE IN MM	WEIGHT (KGS PER MTR)
100 x 50	7.979
125 x 70	13.199
150 x 75	14.997
175 x 85	19.499
200 x 100	25.897
250 x 125	38.099
300 x 140	48.500
350 x 140	52.906
400 x 140	62.601
450 x 150	22.280
500 x 180	87.700
600 x 210	122.600

Jindal Universal Columns (UC)

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UC 152 X 152 X 23
UC 152 X 152 X 30
UC 152 X 152 X 37

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UC 203 x 203 x 46
UC 203 x 203 x 52
UC 203 x 203 x 60
UC 203 x 203 x 71
UC 203 x 203 x 86

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UC 254 X 254 X 73
UC 254 X 254 X 89
UC 254 X 254 X 107
UC 254 X 254 X 137
UC 254 X 254 X 167

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UC 305 X 305 X 97
UC 305 X 305 X 118
UC 305 X 305 X 137
UC 305 X 305 X 158
UC 305 X 305 X 198
UC 305 X 305 X 240
UC 305 X 305 X 283

Jindal Universal Columns (UB)

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UB 203 X 133 X 25
UB 203 X 133 X 30

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UB 254 X 146 X 31
UB 254 X 146 X 37
UB 254 X 146 X 43

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UB 305 X 165 X 40
UB 305 X 165 X 46
UB 305 X 165 X 54

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UB 356 X 171 X 45
UB 356 X 171 X 51
UB 356 X 171 X 57
UB 356 X 171 X 67

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
NPB/IPE 400 X 180 X 57.4
NPB/IPE 400 X 180 X 66.3
NPB/IPE 400 X 180 X 75.7

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UB 406 X 178 X 54
UB 406 X 178 X 60
UB 406 X 178 X 67
UB 406 X 178 X 74

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
NPB/IPE 450 X 190 X 67.2
NPB/IPE 450 X 190 X 77.6
NPB/IPE 450 X 190 X 92.4

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UB 457 X 191 X 67
UB 457 X 191 X 74
UB 457 X 191 X 82
UB 457 X 191 X 89
UB 457 X 191 X 98

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
NPB/IPE 450 X 190 X 67.2
NPB/IPE 450 X 190 X 77.6
NPB/IPE 450 X 190 X 92.4

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UB 533 X 210 X 82
UB 533 X 210 X 92
UB 533 X 210 X 101
UB 533 X 210 X 109
UB 533 X 210 X 122

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
NPB/IPE 600 X 220 X 107.36
NPB/IPE 600 X 220 X 122.4
NPB/IPE 600 X 220 X 154.5

DEPTH (MM) x FLANGE (MM) x SECTIONAL WEIGHT (KG/M)
UB 610 X 229 X 101
UB 610 X 229 X 113
UB 610 X 229 X 125
UB 610 X 229 X 140
